StarTech.com

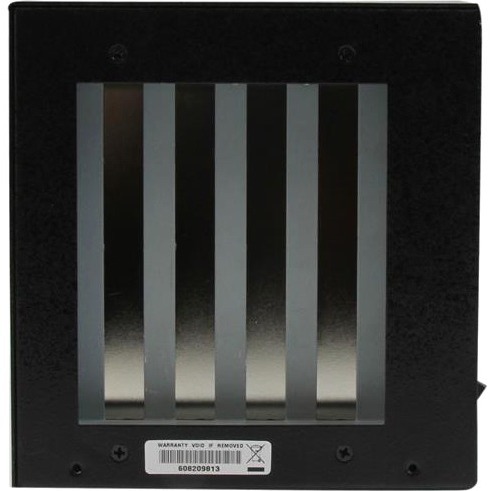

StarTech.com PCI Express to 4 Slot PCI Expansion System - For Laptop, PCBlack

STCPEX2PCI4 STCPEX2PCI4
STCPEX2PCI4 STCPEX2PCI4
STCPEX2PCI4 STCPEX2PCI4
STCPEX2PCI4 STCPEX2PCI4
STCPEX2PCI4 STCPEX2PCI4
StarTech.com

StarTech.com PCI Express to 4 Slot PCI Expansion System - For Laptop, PCBlack

Item Code: STCPEX2PCI4
Manufacturer StarTech.com

Manufacturer-Brochure
User-Manual
Additional-pdf2
Additional-pdf1

Description

StarTech.com's innovative PCI Express to PCI Expansion Chassis provides a quick and simple solution to I/O expandability on almost any PCI Express (PCIe) enabled system. Adding external PCI slots to a server/workstation or laptop, this cost-effective and time-saving method of simply adding additional PCI cards to a server/workstation or providing a platform to be able to swap PCI add-in cards between a mobile and desktop setup is the optimal method of maximizing the I/O capabilities of new or existing systems. The external expansion chassis adds four PCI slots (32-bit/33MHz) to the host computer system, through a single PCI Express connection. Providing total bandwidth of up to 250MBps from the x1 PCIe host controller card, which allows the host computer to function as though the cards in the expansion chassis were connected directly to the motherboard. The PCIe controller card connects directly to the PCI Expansion box with an included DVI cable for a reliable, high quality connection. A dependable I/O expansion solution, the Expansion Chassis is backed by StarTech.com's 2-year warranty and free lifetime technical support. More from the Manufacturer

More from the Manufacturer
Lead Time

Ships in 6-10 Bus Days

UNSPSC Code

43201600

Weight

5.7lb

Height

8.1in

Width

9.7in

Length

10.1in

Catalog Page Number

NEW

Additional Information

Connector(s):

  • Connector Type(s): PCI Express x1
  • External Ports: PCI / PCI-X (Universal 3.3 & 5V, 32-bit) Slot

Application/usage

Laptop

Brand

StarTech.com

Brand Name

StarTech.com

Color Family

Black

Country of Origin

Taiwan

Environmental Compliance

Restriction of Hazardous Substances (RoHS)

Environmentally Friendly

Yes

Height

5.6"

Length

8"

Limited Warranty

2 Year

Manufacturer

StarTech.com

Manufacturer Part Number

PEX2PCI4

Manufacturer Website Address

http://www.startech.com

Package Contents

  • 1 x PCI Expansion Box
  • 1 x PCI Express Card
  • 1 x 3ft DVI Cable
  • 1 x Low Profile Bracket
  • 1 x Screw Kit
  • 1 x Power Cable
  • 1 x Universal Power Adapter

Packaged Quantity

1 each

Product Color

Black

Product Material

Aluminum

Product Name

PCI Express to 4 Slot PCI Expansion System

Product Type

Expansion Chassis

TAA Compliant

Yes

Weight (approximate)

5.20 lb

Width

5.4"

- +
- +
